Dinstar MTG2000B

El MTG2000B es un gateway VoIP digital de alta disponibilidad (HA) con grado operador, equipado con MCUs y fuentes de alimentación redundantes, escalable de 4 a 16 puertos E1/T1. Ofrece servicios VoIP y FoIP de grado operador, así como funciones de valor añadido como módem y reconocimiento de voz. Con características de fácil mantenimiento, gestión y operabilidad, ofrece a los usuarios una red de comunicaciones flexible, eficiente y con visión de futuro.

El MTG2000B admite una amplia gama de protocolos de señalización, lo que permite la interconexión entre SIP y señales tradicionales como ISDN PRI/SS7, optimizando los recursos de trunking y garantizando la calidad de la voz. Gracias a sus múltiples códigos de voz, cifrado seguro de señales y tecnología de reconocimiento de voz inteligente, el MTG2000B es ideal para diversas aplicaciones de grandes empresas, centros de llamadas, proveedores de servicios y operadores de telecomunicaciones.

  • 4 to 16 ports E1/T1 in 1U chassis

  • Up to 480 simultaneous calls

  • Redundant MCUs (Main Control Unit)

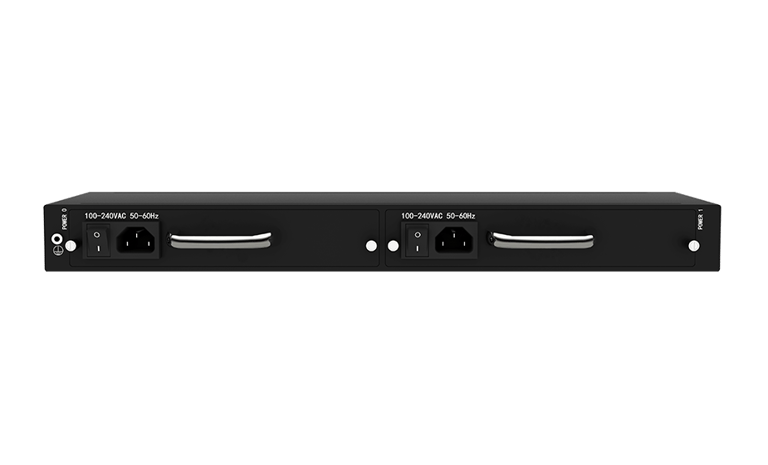

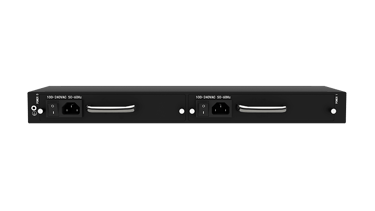

  • Dual Power Supplies

  • Flexible routing

  • Multiple SIP trunks

  • Fully compatible with mainstream VoIP platforms

Technical Specifications

Overview & High-Availability Features

  • The MTG2000B is a carrier-grade, high-availability (HA) digital VoIP gateway equipped with redundant main control units (MCUs) and dual power supplies for exceptional reliability.

  • It supports 4 to 16 E1/T1 ports (in a compact 1U rack-mount chassis), making it highly scalable for growing infrastructure needs.

  • Capable of handling up to 480 simultaneous calls, it’s suitable for large enterprises, telecom operators, call centers, and service providers.

Voice & PSTN Protocol Support

  • Supports a wide range of PSTN signaling protocols, including ISDN PRI, SS7 (with link redundancy), and R2 MFC, enabling seamless interconnection between traditional networks and SIP-based VoIP systems.

  • Comprehensive fax and modem support: T.38 fax, pass-through fax, and compatibility with modem/POS systems for legacy integrations.

Voice Codecs & Quality Enhancement

  • Audio codecs supported: G.711 (A/μ law), G.723.1, G.729A/B, iLBC (13k/15k), and AMR.

  • Incorporates voice quality features such as echo cancellation (G.168, up to 128 ms), silence suppression, comfort noise generation (CNG), voice activity detection (VAD), adaptive jitter buffering, and gain control for both voice and fax.

SIP Capabilities & Network Features

  • Supports SIP v2.0, SIP-T, and related protocols (RFC3372, RFC3204, RFC3398). It allows for multiple SIP trunks and supports up to 256 SIP/IMS accounts for extensive integration.

  • Includes network features like NAT traversal (Dynamic NAT, Rport), adaptive dynamic buffering, and encryption (voxel – VOS RC4) to secure signaling and media.

Routing & Intelligent Call Control

  • Enables flexible routing modes: PSTN-PSTN, PSTN-IP, and IP-PSTN.

  • Highly intelligent call routing—including time-based logic, prefix manipulation, overlapping dialing, and support for up to 256 routing rules per direction.

  • Supports advanced call controls such as number manipulation, white/black listing, trunk grouping, IP trunk priority, ringback tone customization, and dialing rule sets (up to 2000 rules).

Management & Administration

  • Managed via a user-friendly web-based GUI, SNMP (v1/v2/v3), and Dinstar Cloud Management System for remote provisioning and system control.

  • Features configuration backup/restore, firmware upgrades (via TFTP/Web), network capture, syslog, call history logging, NTP synchronization, and advanced debugging tools.

Hardware, Interfaces, & Environmental Specifications

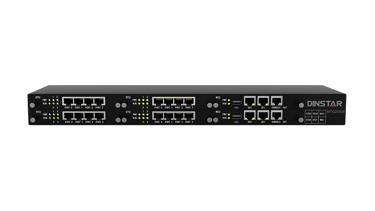

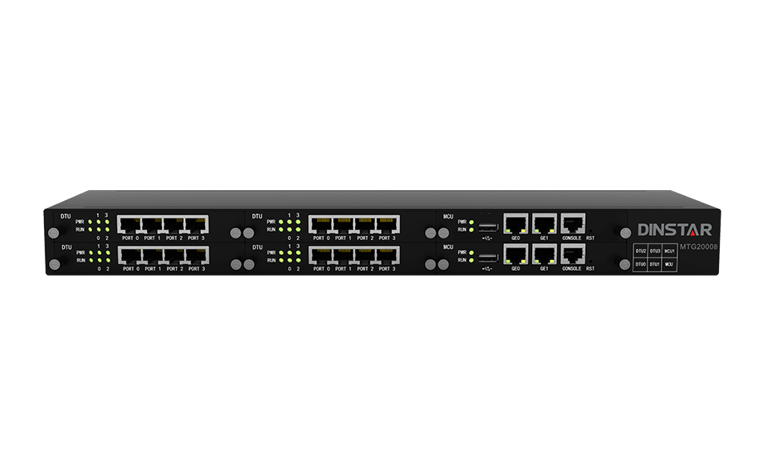

  • Physical interfaces: Supports 4/8/12/16 E1/T1 (RJ48), 2 Gigabit Ethernet (10/100/1000 Mbps), and a serial RS-232 port (115200 bps).

  • Hardware design: Compact 1U form factor; weight approximately 3.8 kg; power input 100–240 VAC, power consumption ~45 W.

  • Environmental tolerances: Operates from 0 to 45 °C, storage from –20 °C to 80 °C, with 10–90% humidity (non-condensing). Compliant with CE and FCC standards.

Feature Snapshot Table

Feature Category Highlights

High Availability Redundant MCUs & power supplies (carrier-grade design)

Scalability & Capacity 4–16 E1/T1 ports; up to 480 concurrent calls

PSTN Protocol SupportI SDN PRI, SS7 (with redundancy), R2 MFC

Call Features Voice, Fax (T.38), modem/POS support

Codecs & Quality G.711, G.723.1, G.729, iLBC, AMR; echo cancellation, VAD, etc.

SIP & Network SIP v2.0, SIP-T, multiple trunks, 256 accounts, encryption

Routing Capabilities Time/prefix-based; 256 rules/direction; advanced caller manipulation

Management Tools Web GUI, SNMP, cloud, syslog, NTP, debug, firmware tools

Hardware Specs 1U rack, dual GE, serial, 45 W, 3.8 kg

Environmental Design 0–45 °C operating, CE/FCC compliant

Summary

The Dinstar MTG2000B is a robust, HA-capable, carrier-grade VoIP gateway delivering unmatched reliability and scalability. With its powerful hardware redundancy, advanced PSTN and SIP protocol support, intelligent routing, and enterprise-level management tools, it is well-suited for high-availability telephony deployments in demanding environments.
